Etching Press – Model EP4829

  • Please call us on +44 (0) 1933 315005 to enquire about this product

Traditional Style Etching Press

Designed to meet the needs of the Artist using larger plates than the popular Model 4824 will accept.
Extremely robust, solid construction.

EP4829 Plank Size 48″ x 29″   (1220mm x  736mm)

  • Both rollers are made from heavy-gauge steel tubing, 6″ (150mm diameter)
  • Top roller ground and plated to prevent rust.
  • 15 mm thick steel side frames.

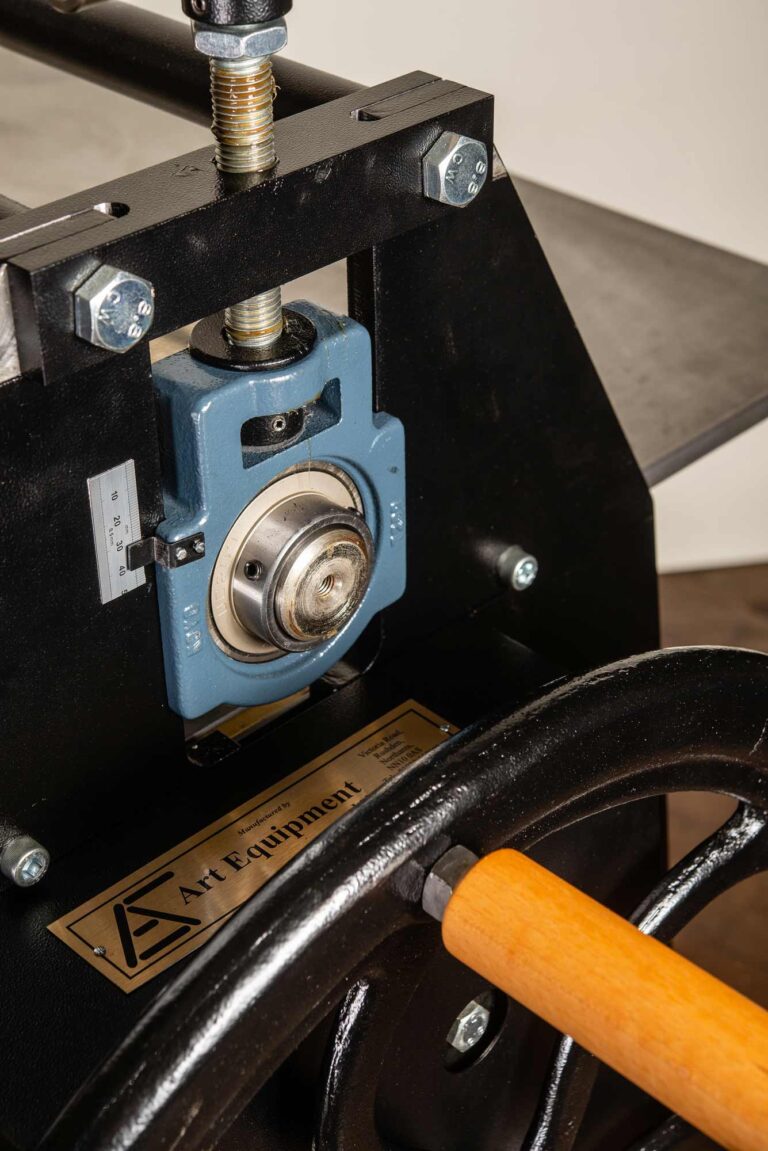

  • Both rollers mounted in ball bearings
  • Plank in 5/8″ (15mm) thick ground steel plate.
  • Triple gearing for ease of operation under great pressure from side adjusting screws.
  • Traditional style heavy cast iron spoked handwheel.
  • Useful shelf underneath.
  • Plastic covering to plank can be fitted if required for easy cleaning and registration marking.

MOTORISED VERSION AVAILABLE

Recommended Blankets:
1 Best quality Fronting Felt size 48″ x 28″
(1220 x 711mm)
1 Best quality Compressed Wool Backing size 48″ x 28″
(1220 x 711mm)
For LITHOGRAPHS 1 – Lithograph grey blanket

Shipping Specifications:

Nett Weight: 728lbs. (330Kg)

This press is no longer available. Spares, service & blankets only.
